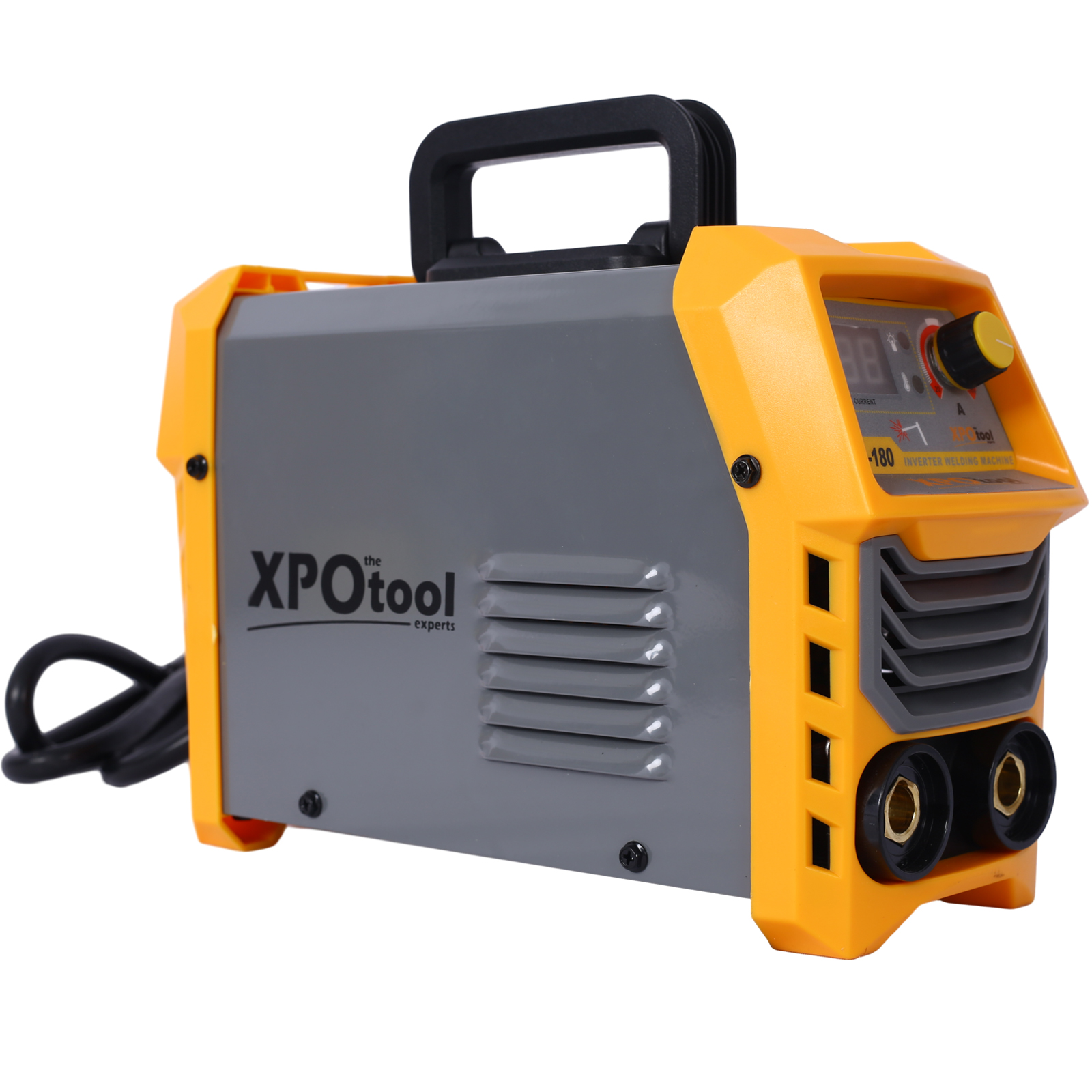

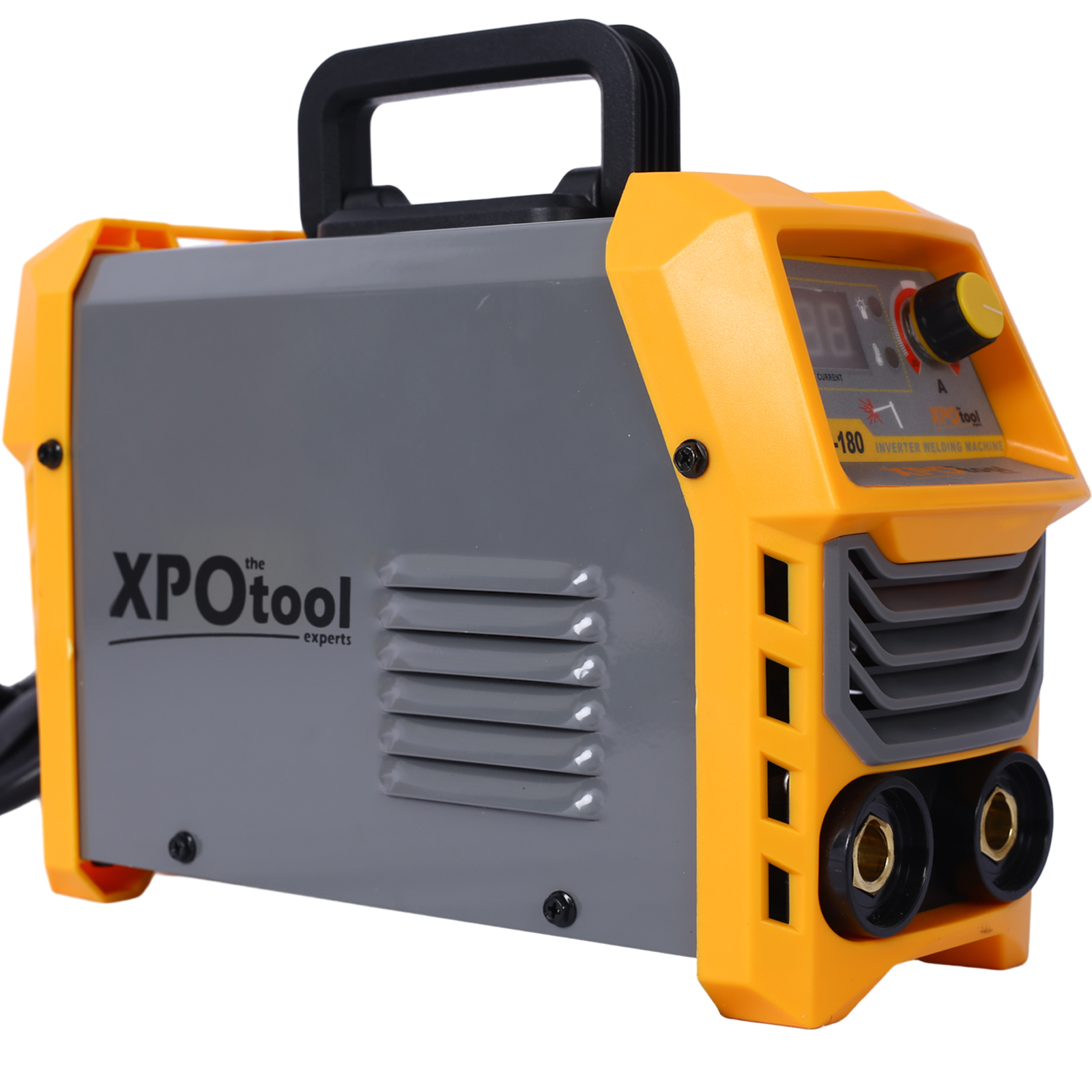

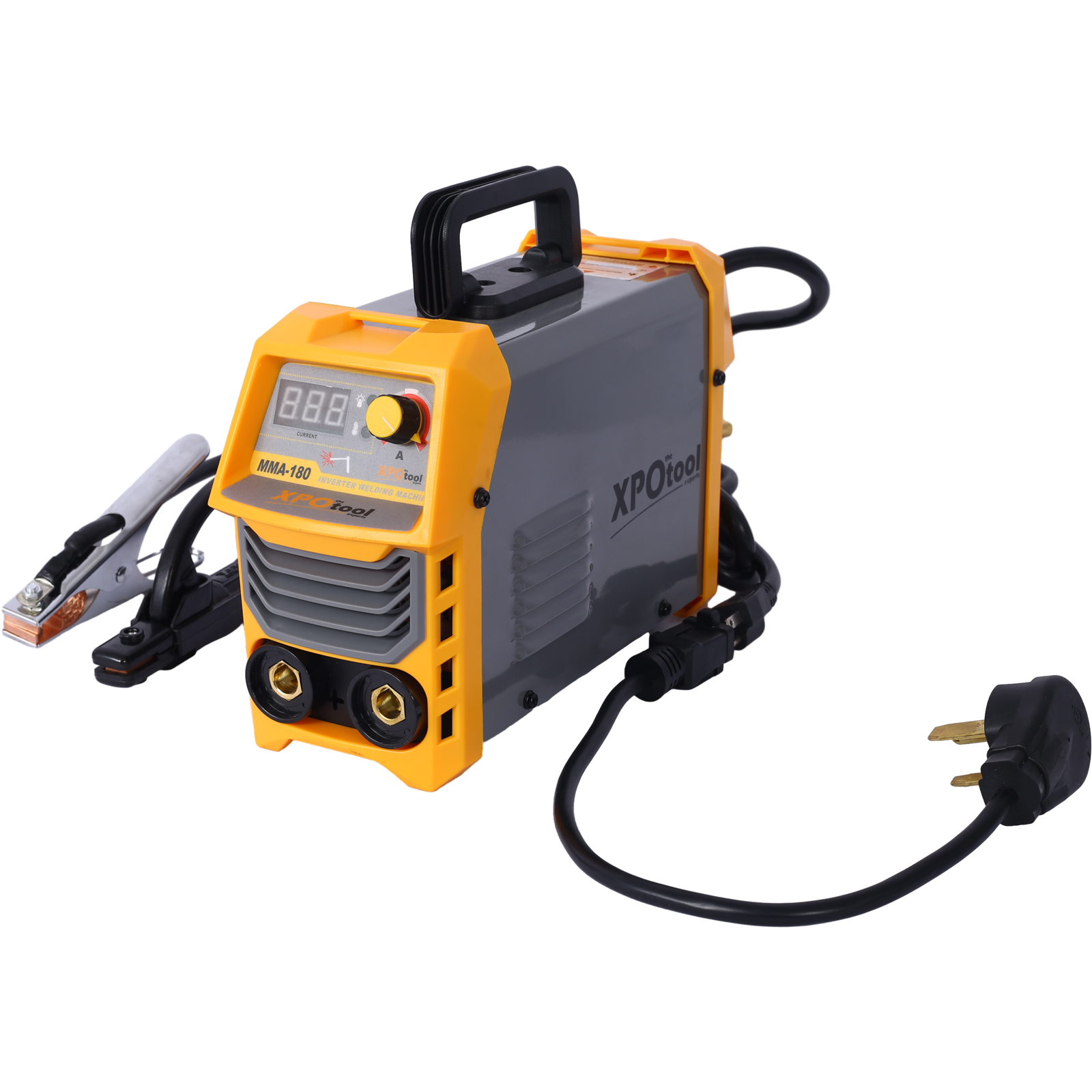

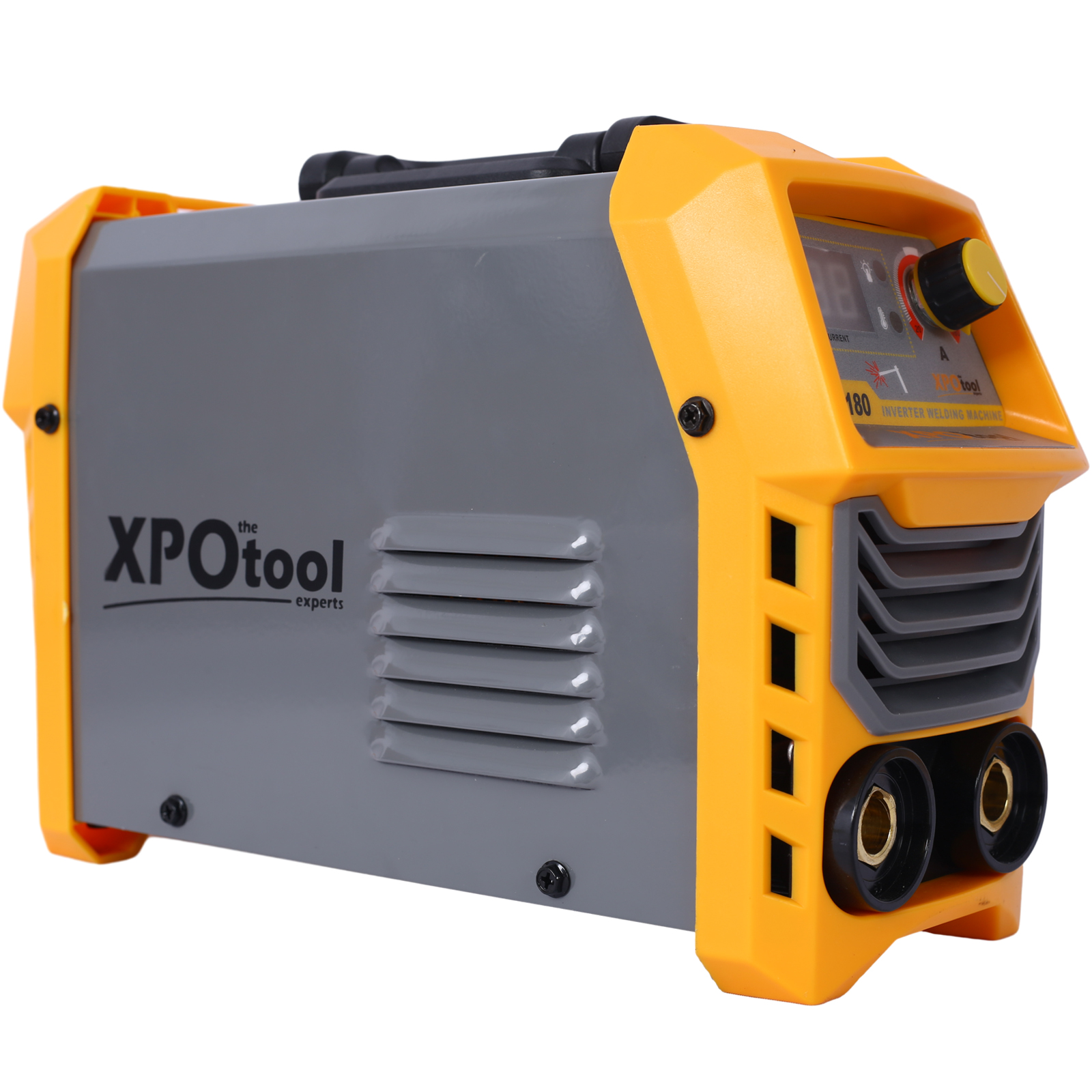

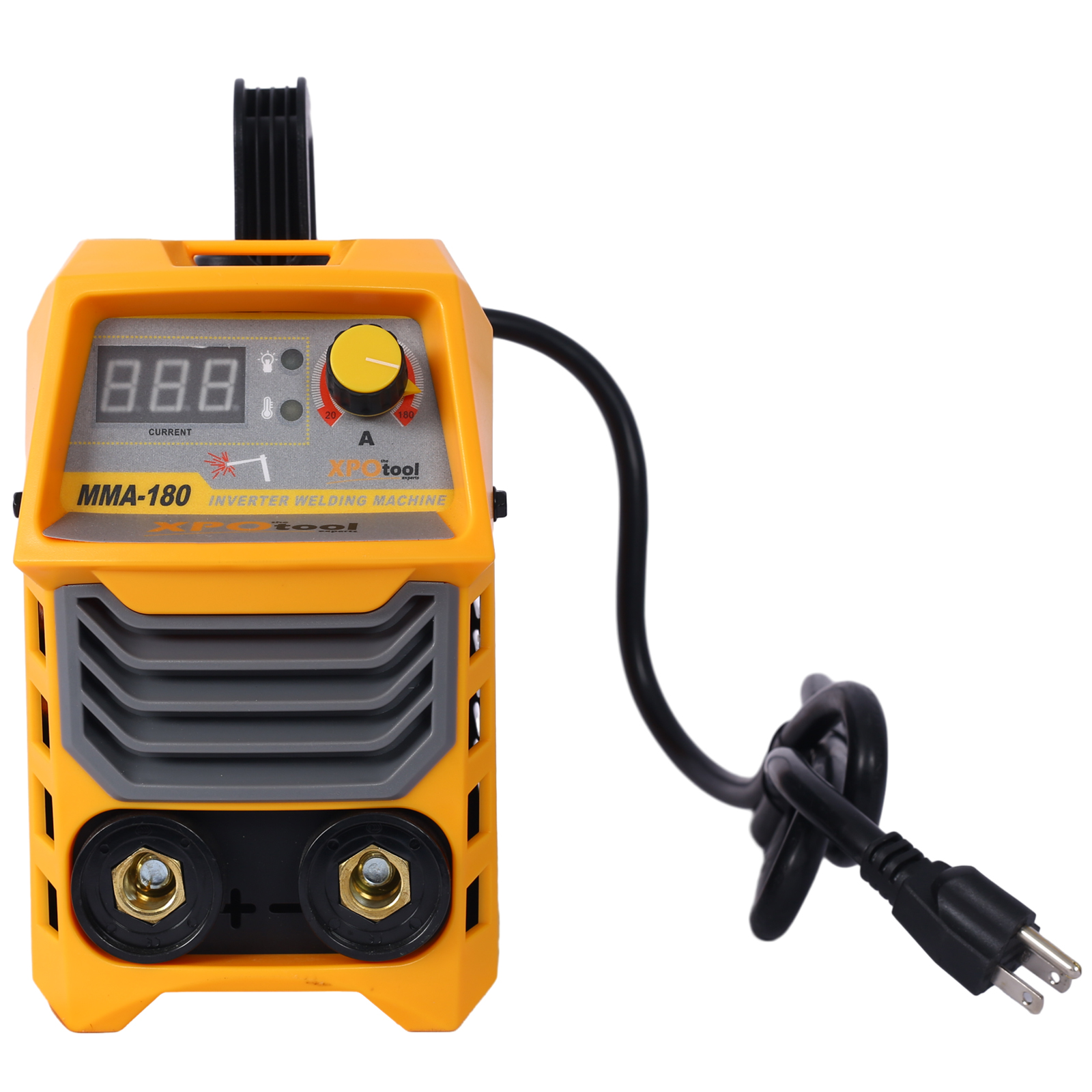

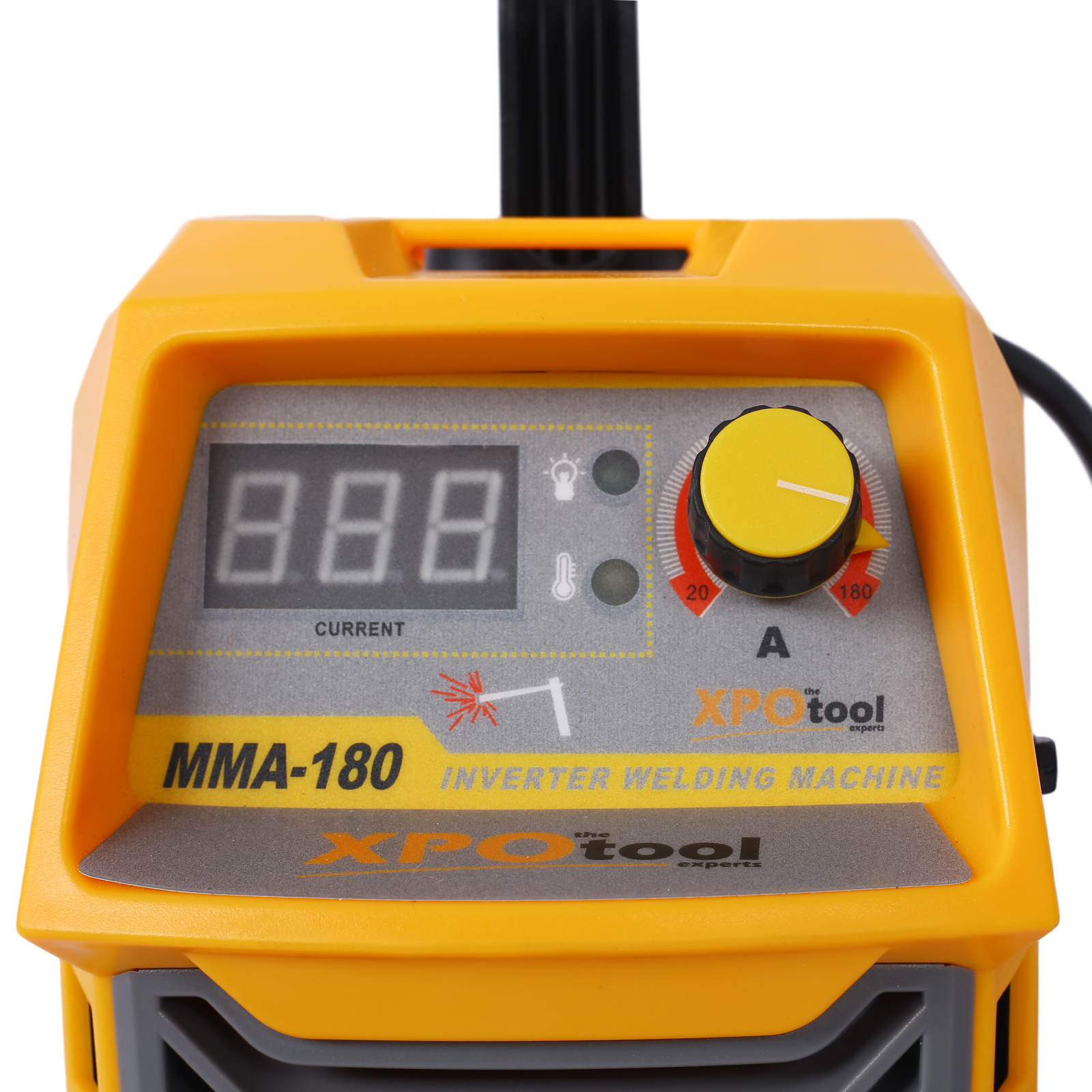

110 220V MMA Welder, 180A Stick Welding Machine IGBT Inverter Digital Display LCD Hot Start Welder With Electrode Holder, Work Clamp, Input Power

Product Specifications:

Basic information

Product Type:Single Box Product

Product Name:110/220V MMA Welder, 180A Stick ARC Welding Machine IGBT Inverter Digital Display LCD Hot Start Welder with Electrode Holder, Work Clamp, Input Power Adapter Cable Dual Voltage DC

Color:Yellow+Grey

Material:ABS+Steel(Q235)

Product size

Assembly Length (inches):13.00

Assembly Width (inches):5.00

Assembly Height (inches):8.50

Product Weight (lbs):11.00

Package size

Length (inches):15.00

Width (inches):9.40

Height (inches):10.20

Weight (lbs):12.30

Product features:

• Advanced Technology: It can easily weld normal rods below 5/32 and features high duty cycle capabilities, allowing for the consecutive welding of 10 electrodes without protection. Additionally, it can operate normally in temperatures as low as minus 15 degrees, ensuring reliable performance.
• Safety Guarantee & Portable Design: With comprehensive safety features including over-heating, over-current, and over-loading protection, this welder ensures a secure welding experience while maintaining high-quality performance. Its portable design, equipped with an easy carrying handle, makes it convenient for transfer and storage, enabling usage in various locations.
• Best Choice for Beginners: Ideal for welding with E6011, E6013, E6014, and E7018 electrodes, this welder's digital unitary design automatically matches electrode sizes and current, making it suitable for beginners. The seamless welding process produces beautiful results, even without extensive welding experience.
• Dual-Voltage & High-Quality Accessories: The 20A-180A current stepless adjustment and 90V-260V wide-voltage design make this welder adaptable to various voltage fluctuations. Its 110/220V dual-voltage

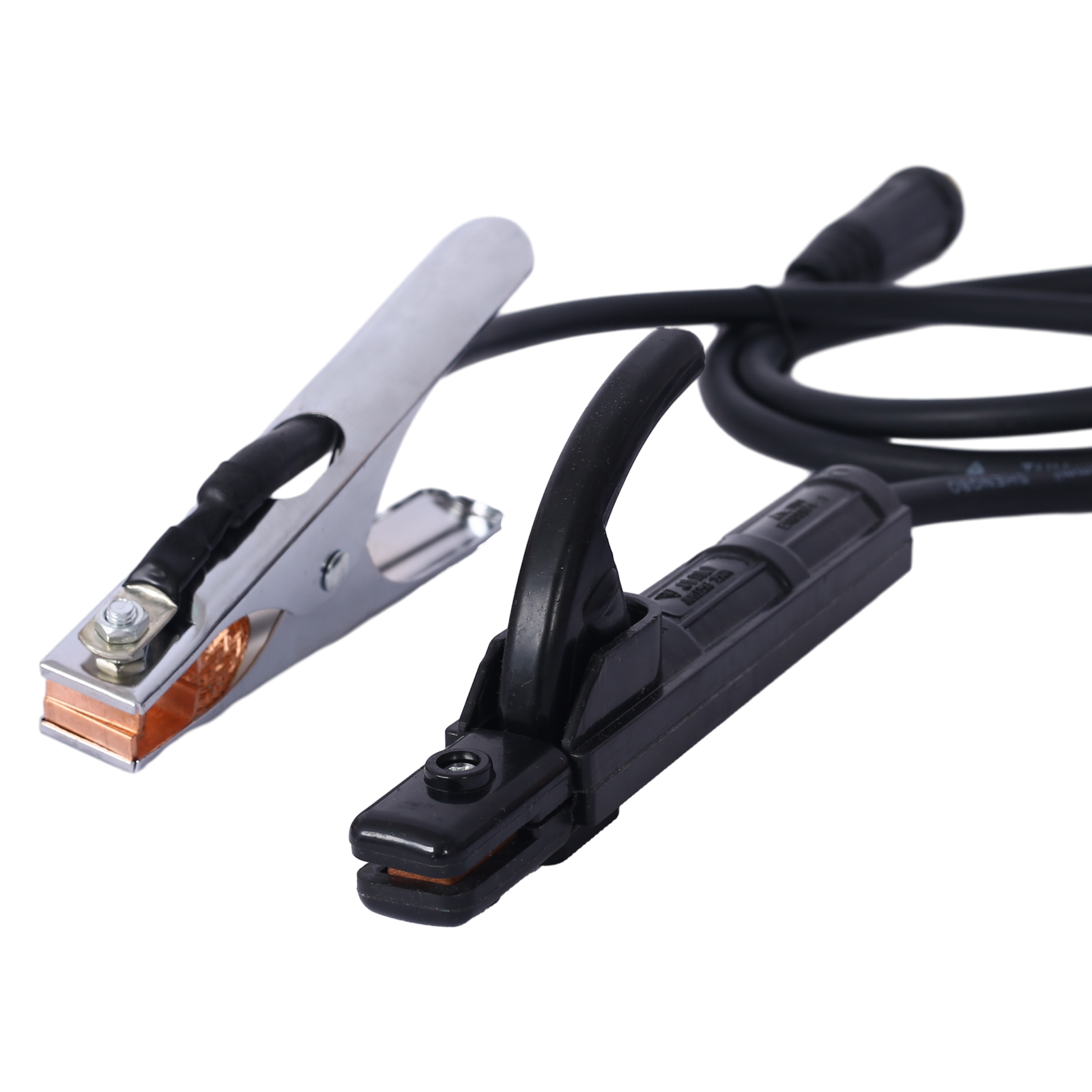

• automatic conversion further enhances its usability. The welder comes with a range of high-quality accessories, including a 500A Electrode Holder Assembly, a 500A Work Clamp Assembly

Graphic description

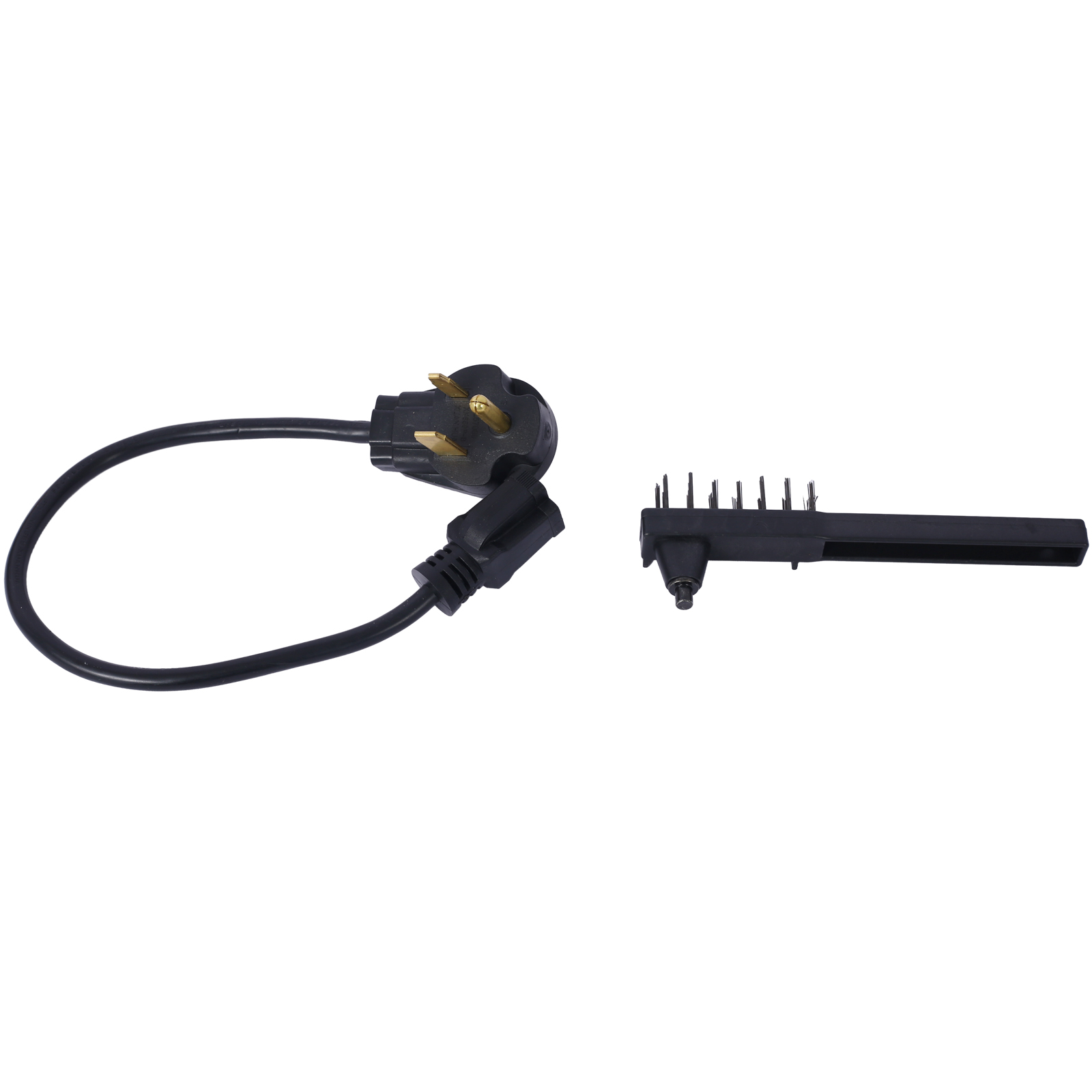

Power voltage: 230V/110V Frequency: 50HZ/60HZ Max Absorbed power: 6.1KW Current range: 20-180A Max no-load voltage in DC: 65V Duty cycle: 45%@180A at 40℃ Welding wire diameter: Φ2.0-4.0mm Insulation class: H Case protection degree: IP21S Arc-starting COS: 0.9 Efficiency(%): 80% "Arc force / Hot start Anti-Stick Current protection Overlheat protection" 110V/220V conversion plug E257089 XN650P-B XUANHUA Conversion plug wire (UL) C(UL) SJT 3/C 14AWG(2.08mm2) 105℃ VW-1 300V 500mm long Welding gun wire TUV H01N2-D 120mm2 SHENGBO 2 meters long Ground wire TUV H01N2-D 120mm2 SHENGBO 1.5 meters long Power plug c(UL) GL-18 E488060 Power cord (UL) SJTW 3*2.08mm2 (14AWG) 105℃ 300V VW-1 ZHEJIANG GUANGLAI 1.5 meters long
